种类 |
尺寸 |
检测距离 |
连接方式 |
动作状态 |
型号 |
|

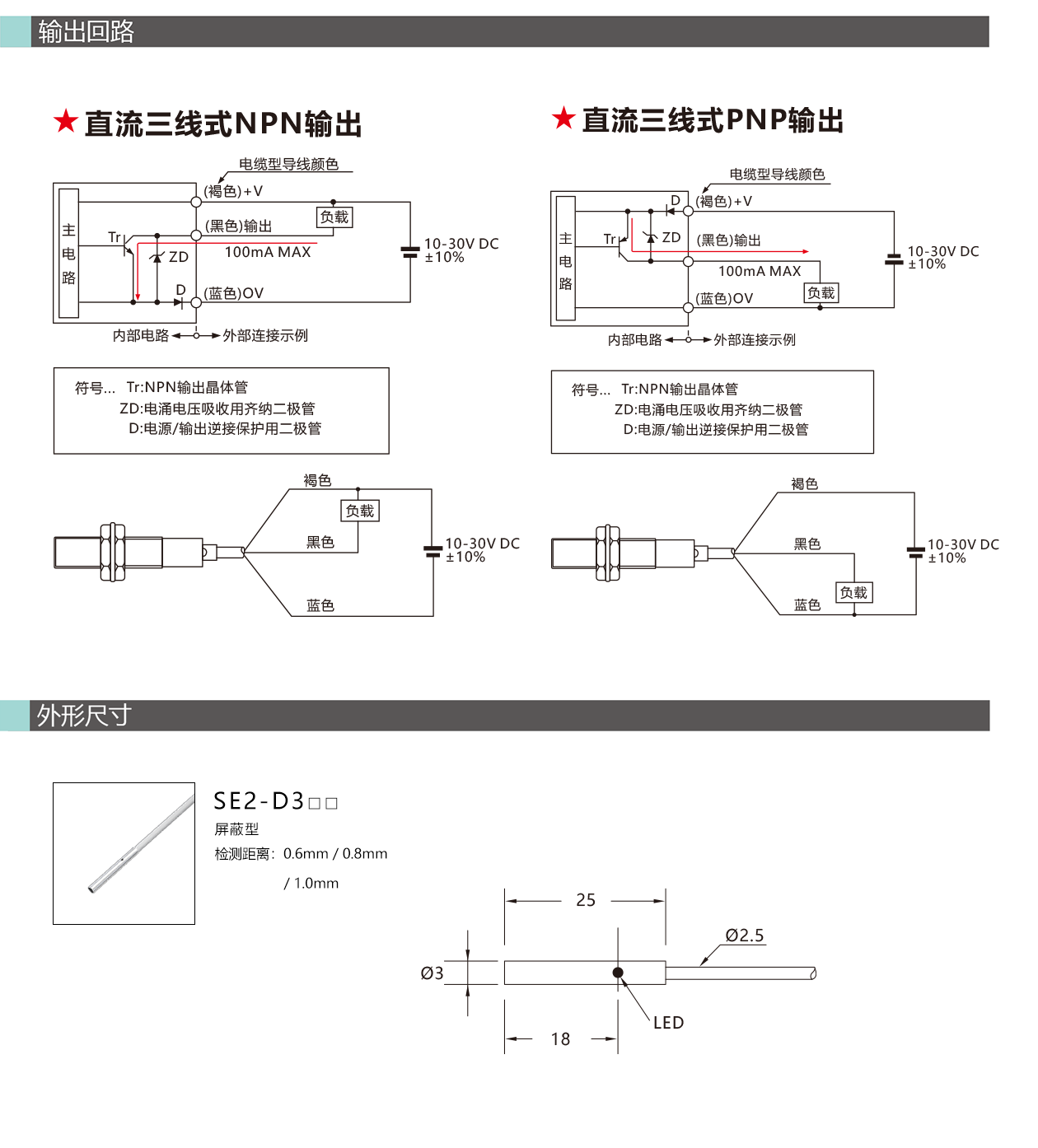

NPN输出 |
PNP输出 |
|||||
屏蔽型 |
∅3 |
0.6mm |
导线引出型(2m) |
NO |
SE2-D3AN006T-2M |
SE2-D3AP006T-2M |
NC |
SE2-D3BN006T-2M |
SE2-D3BP006T-2M |
||||
0.8mm |
NO |
SE2-D3AN008T-2M |
SE2-D3AP008T-2M |
|||
NC |
SE2-D3BN008T-2M |
SE2-D3BP008T-2M |
||||
1.0mm |
NO |
SE2-D3AN010T-2M |
SE2-D3AP010T-2M |
|||
NC |
SE2-D3BN010T-2M |
SE2-D3BP010T-2M |
||||
∅4 |
0.8mm |
NO |
SE2-D4AN008T-2M |
SE2-D4AP008T-2M |
||
NC |
SE2-D4BN008T-2M |
SE2-D4BP008T-2M |
||||
1.0mm |
NO |
SE2-D4AN010T-2M |
SE2-D4AP010T-2M |
|||
NC |
SE2-D4BN010T-2M |
SE2-D4BP010T-2M |
||||
1.2mm |
NO |
SE2-D4AN012T-2M |
SE2-D4AP012T-2M |
|||
NC |
SE2-D4BN012T-2M |
SE2-D4BP012T-2M |
||||
1.5mm |
NO |
SE2-D4AN015T-2M |
SE2-D4AP015T-2M |
|||
NC |
SE2-D4BN015T-2M |
SE2-D4BP015T-2M |
||||
M5 |
0.8mm |
NO |
SE2-M5AN008T-2M |
SE2-M5AP008T-2M |
||
NC |
SE2-M5BN008T-2M |
SE2-M5BP008T-2M |
||||
1.0mm |
NO |
SE2-M5AN010T-2M |
SE2-M5AP010T-2M |
|||
NC |
SE2-M5BN010T-2M |
SE2-M5BP010T-2M |
||||
1.2mm |
NO |
SE2-M5AN012T-2M |
SE2-M5AP012T-2M |
|||
NC |
SE2-M5BN012T-2M |
SE2-M5BP012T-2M |
||||
1.5mm |
NO |
SE2-M5AN015T-2M |
SE2-M5AP015T-2M |
|||
NC |
SE2-M5BN015T-2M |
SE2-M5BP015T-2M |
||||
M6 |
0.8mm |
NO |
SE2-M6AN008T-2M |
SE2-M6AP008T-2M |
||
NC |
SE2-M6BN008T-2M |
SE2-M6BP008T-2M |
||||
1.0mm |
NO |
SE2-M6AN010T-2M |
SE2-M6AP010T-2M |
|||
NC |
SE2-M6BN010T-2M |
SE2-M6BP010T-2M |
||||
1.2mm |
NO |
SE2-M6AN012T-2M |
SE2-M6AP012T-2M |
|||
NC |
SE2-M6BN012T-2M |
SE2-M6BP012T-2M |
||||
1.5mm |
NO |
SE2-M6AN015T-2M |
SE2-M6AP015T-2M |
|||
NC |
SE2-M6BN015T-2M |
SE2-M6BP015T-2M |

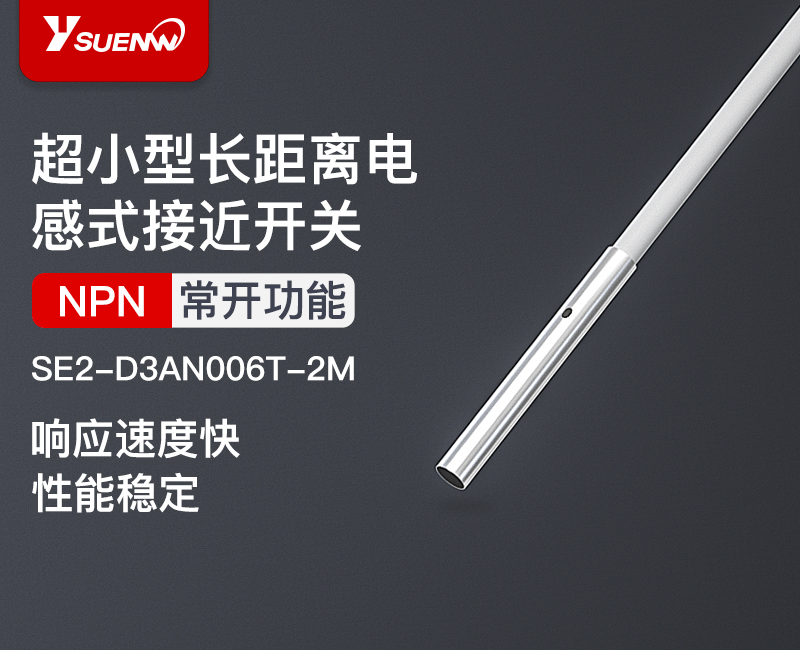

D3电感式超小型接近开关 |
||||
产品型号 |
NO |
SE2-D3A□006T-2M |
SE2-D3A□008T-2M |
SE2-D3A□010T-2M |
NC |
SE2-D3B□006T-2M |
SE2-D3B□008T-2M |
SE2-D3B□010T-2M |
|
产品尺寸 |
D3* 25mm |
|||
安装方式 |
齐平 |
|||
感应距离(mm) |
0.6mm / 0.8mm / 1.0mm |
|||
外壳材质 |
不锈钢 |
|||
是否带LED |
●带LED |
|||
工作电压 |
10-30VDC |
|||
连波 |
<10% |
|||
无负载电流 |
<10mA |
|||
最大负载电流 |
100mA |
|||
漏电流 |
<0.01mA |
|||
电压降 |
<1.5V |
|||
开关频率 |
2KHz / 2KHz / 1KHz |
|||
响应时间 |
0.1ms/0.1ms/0.3ms |
|||
开关迟滞 |
<15%(Sr) |
|||
重复精度 |
<3.0%(Sr) /<3.0%(Sr) /<5.0%(Sr) |
|||
保护等级 |
IP67 |
|||
工作环境温度 |
-25°C- +70°C |
|||
温度漂移 |
<10%(Sr) |
|||
短路保护 |
- |
|||
过载电流保护点 |
- |
|||
EMC |
RFI>3V/M / EFT>1KV / ESD>4KV(contact) |
|||
冲击/震动 |
IEC 60947-5-2,Part7.4.1 / IEC 60947-5-2,Part7.4.2 |
|||
感应面材质 |
PA66 |
|||
连接方式 |
D2.5 3*0.14 PVC 2M |
