  • SE2系列
  • SE2系列
检测方式
电感式
连接方式
导线引出型(2m)
检测距离
10mm
输出类型
NPN输出
技术参数
检测型号SE2-M30DAN10T-2M/SE2-M30DBN10T-2M
动作状态NO/NC
尺寸M30
屏蔽/非屏蔽屏蔽
最大检测距离10mm±15%
重复精度<5%(Sr)
响应时间1.5ms
标准检测物体磁性金属(非磁性金属检测距离减小)
工作电压10-60V DC
工作电流3-100mA max
开关容量100mA max
应差频率100Hz
泄漏电流0 .81mA以下
工作状态指示灯动作显示(红色LED)
周围温度-25℃-+70℃
周围湿度工作时,保存时:35-95%RH
过载保护120mA
绝缘电阻50M Ωmax.(DC500V)充电部总体与外壳间
耐电压AC 1000V 50/60Hz 1min.充电部总体与外壳间
保护构造IEC 规格IP67

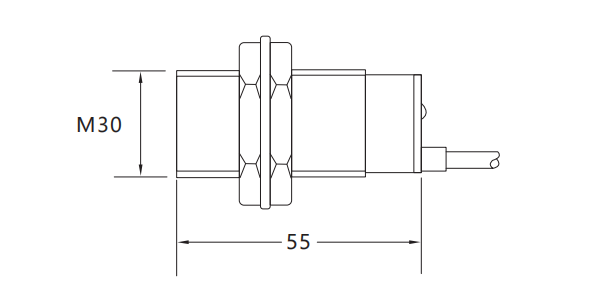

尺寸图
电路图
